Unicode at gigabytes per second

Daniel Lemire with Wojciech Muła and John Keiser
professor, Université du Québec (TÉLUQ)
Montreal 🇨🇦

blog: https://lemire.me
twitter: @lemire
GitHub: https://github.com/lemire/

credit for figures: Wojciech Muła

❗ many other contributors!

From characters to bits

Morse code

  • A : 0 1
  • B : 1 0 0 0
  • C : 1 0 1 0

26 letters.

Fixed-length codes

  • Baudot code (~1860). 5 bits.
  • Hollerith code (~1896). 6 bits.

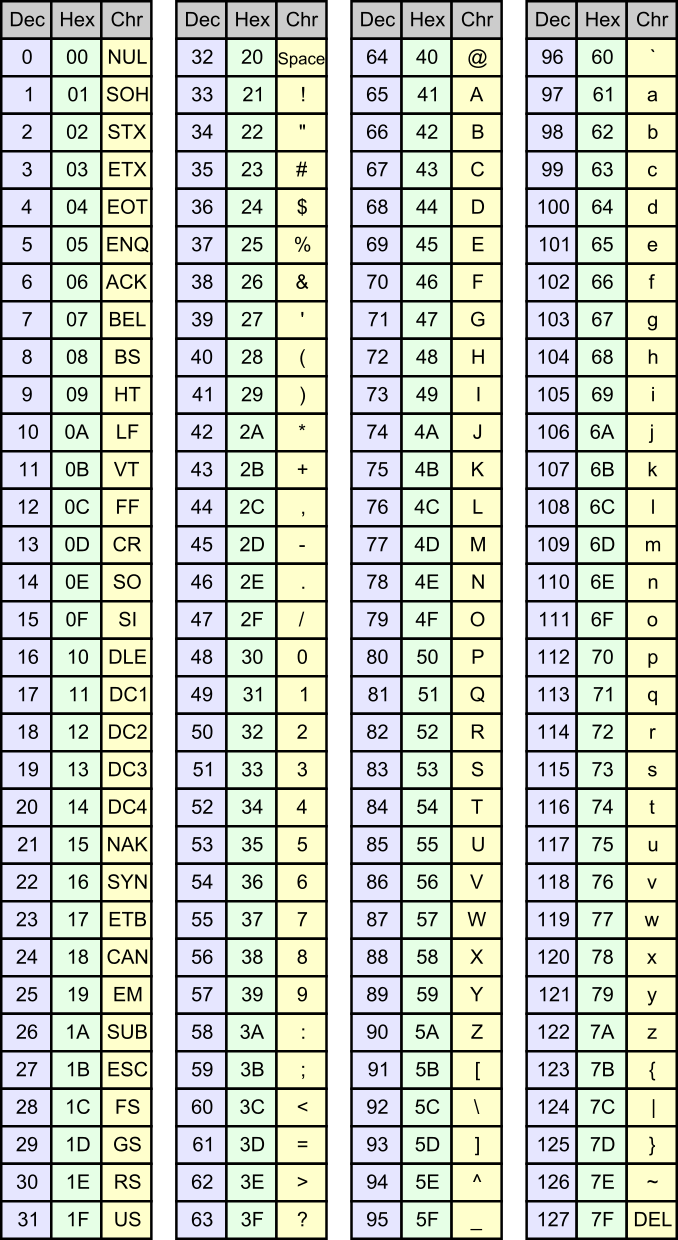

  • American Standard-Code for Information Interchange or ASCII (~1961). 7 bits. 128 characters.

Too many fixed-length codes!

  • IBM: Binary Coded Decimal Interchange Code. 6 bits.
  • IBM: Extended Binary Coded Decimal Interchange Code or EBCDIC. 8 bits.
  • ISO 8859 (~1987). 8 bits. European.
  • Thai (TIS 620), Indian languages (ISCII), Vietnamese (VISCII) and Japanese (JIS X 0201).
  • Windows character sets, Mac character sets.

Unicode (late 1980s)

  • Extends ASCII.
  • Universal.
  • Replaces all other standards.
  • Typography, full localisation, extensible.

Unicode: how many bits?

  • 16 bits ought to be enough?
  • Numerical range from 0x000000 to 0x10FFFF.
  • Would need 20 to 21 bits.

UTF-16 and UTF-8

Two main formats.

UTF-16: Java, C#, Windows

UTF-8: XML, JSON, HTML, Go, Rust, Swift

UTF-16 and UTF-8

character range UTF-8 bytes UTF-16 bytes
ASCII (0000-007F) 1 2
latin (0080-07FF) 2 2
asiatic (0800-D7FF, E000-FFFF) 3 2
supplemental (010000-10FFFF) 4 4

UTF-16

  • 16-bit words.
  • characters in 0000-D7FF and E000-FFFF, stored as 16-bit values---using two bytes.
  • characters in 010000-10FFFF are stored using a 'surrogate pair'.
  • Comes in two flavours (little and big endian at the 16-bit level).

UTF-16 (surrogate pair)

  • first word in D800-DBFF.
  • second word in DC00-DFFF.
  • character value is 10 least significant bits of each---second element is least significant.
  • add 0x10000 to the result.

UTF-8

  • 8-bit words (no endianess)
  • One 'leading' byte followed by 0 to 3 bytes.

UTF-8 format

  • Most significant bit of leading is zero, ASCII: [01000001].
  • 3 most significant bits 110, two-byte sequence: [11000100] [10000101].
  • 4 most significant bits 1100, three-byte sequence.
  • 5 most significant bits 11000, four-byte sequence.
  • Non-leading bytes have 10 as the two most significant bits.

UTF-8 validation rules

  • The five most significant bits of any byte cannot be all ones.
  • The leading byte must be followed by the right number of continuation bytes.
  • A continuation byte must be preceded by a leading byte.
  • The decoded character must be larger than 7F for two-byte sequences, larger than 7FF for three-byte sequences, and larger than FFFF for four-byte sequences.
  • The decoded code-point value must be less than 110000
  • The code-point value must not be in the range D800-DFFF.

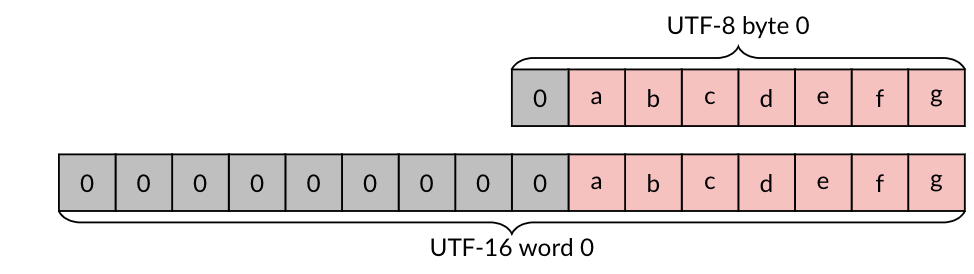

UTF-8/UTF-16 comparison (ASCII)

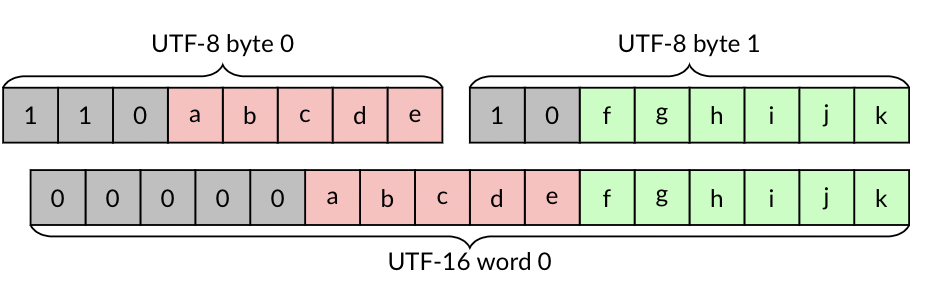

UTF-8/UTF-16 comparison (2-bytes)

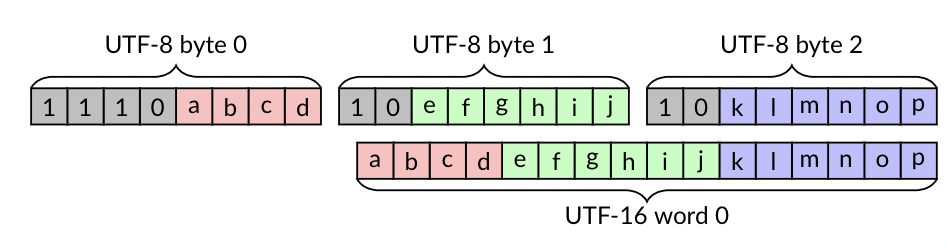

UTF-8/UTF-16 comparison (3-bytes)

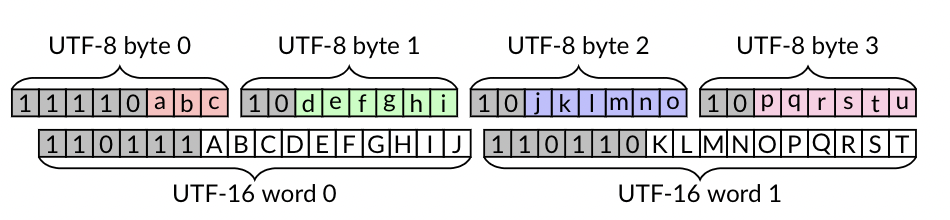

UTF-8/UTF-16 comparison (4-bytes)

UTF-8/UTF-16 transcoding

  • Must convert (transcode) from one format to the other format, while validating the input.

Some numbers

  • bandwidth between node instances: over 3 GB/s
  • PCIe 4.0 disks (and PlayStation 5): over 5 GB/s
  • Popular C++ trancoding library (ICU): ~1 GB/s

Gigabytes per second?

  • x64, ARM, POWER: have SIMD instructions.
UTF-8 to UTF-16 UTF-16 to UTF-8 validation table size
Cameron's u8u16 (2008) yes no yes N/A
Inoue et al. (2008) partial no no 105 kB
simdutf yes yes yes 20 kB

Software implementations (no formal paper): Goffart (2012) and Gatilov (2019)

Vectorized permutation

  • Can permute blocks of 16 bytes (or 32 bytes) using a single cheap instruction.

  • Need a precomputed shuffle mask.

  • data : [a b c d e f g]

  • shuffle mask : [3 1 0 3 3 2 -1] (indexes)

  • result : [d b a d d c 0]

  • Conversely may be used as a form of vectorized table lookup.

UTF-8 to UTF-16 transcoding (core)

  • Take a block of bytes.
  • Continuation bytes (leading bits 10, less than -64)
  • Non-continuation bytes are leading bytes
  • Bytes before a leading byte end a character
  • Build a bitmap
  • Use the bitmap in a lookup table

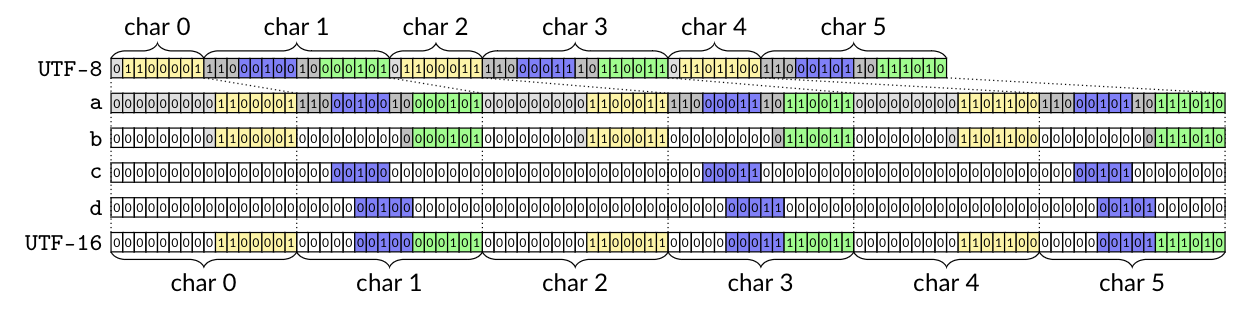

UTF-8 to UTF-16 transcoding (example)

Start with...

[01000001] ([11000100] [10000101])
[01100011] ([11000011] [10000011]) [01101100] ([11000101] [10111010])

We have 9 bytes. Build a 9-bit bitmap where '1' means the end of a character

101101101

Use this as index in a table.

UTF-8 to UTF-16 transcoding (table)

  • If using 12-byte blocks, need 4096-long table.
  • Each entry points to a shuffle mask and number of consumed bytes.

UTF-8 to UTF-16 transcoding (cases)

Shuffle masks are sorted into 'cases'.

  1. First 64 cases correspond to 1-byte or 2-byte characters only.
  2. Next 81 cases correspond to 1, 2 or 3 bytes per character.
  3. Next 64 cases correspond to general case (1 to 4 bytes).

Each case corresponds to a code path.

UTF-8 to UTF-16 transcoding (more tricks)

  1. Load blocks of 64 bytes.
  2. Check for fast paths (e.g. all ASCII).
  3. Eat 12 bytes at a time within 64 bytes.
  4. Add a few fast path (e.g., all ASCII, all 2-byte, all 3-byte).

UTF-8 to UTF-16 transcoding (validation)

Given a 64-byte block, we can use a fast vectorized
validation routine.

  • Validating UTF-8 In Less Than One Instruction Per Byte, Software: Practice and Experience 51 (5), 2021

UTF-8 to UTF-16 transcoding (core algo)

  • You can identify most UTF-8 errors by looking at sequences of 3 nibbles (4-bit).
  • E.g., ASCII followed by continuation, leading not followed by continuation byte.

Do three lookups (using shuffe mask) and compute a bitwise AND. We call this
vectorized classification.

Simplified vectorized classification

  • Suppose you want to find all instances where value 3 is followed by
    value 1 or 2.

  • Create two lookup tables.

  • One for first nibble [0,0,0,1,0,0,0,0,0,0,0,0,0,0,0,0]

  • second nibble [0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0]

  • Lookup first nibble in table, lookup second, compute bitwise AND.

  • If result is 1, you have a match.

  • Can do this in parallel over many values.

Fancier vectorized classification

  • Suppose you want to find all instances where value 3 is followed by
    value 1 or 2. Value 5 followed by 0. Value 6 followed by 10.

  • Create two lookup table2.

  • One for first nibble [0,0,0,1,0,2,4,0,0,0,0,0,0,0,0,0]

  • second nibble [2,1,1,0,0,0,0,0,0,0,4,0,0,0,0,0]

  • Lookup first nibble in table, lookup second, compute bitwise AND.

Array of nibbles:

  • original: [a0 a1 a2 a3 a4 ...]
  • shift: [a1 a2 a3 a4 ...]
  • shift: [a2 a3 a4 ...]
  • f([a0 a1 a2 a3 a4 ...]) AND g([a1 a2 a3 a4 ...]) AND g([a2 a3 a4 ...])

UTF-16 to UTF-8

The other direction (from UTF-16 to UTF-8) is somewhat easier!

UTF-16 to UTF-8 (ASCII)

If all 16-bit words are ASCII (0000-007F), use a fast routine: 16 bytes into 8 'packed' bytes.

UTF-16 to UTF-8 (0000-07FF)

If all 16-bit words are in (0000-07FF)... build an 8-bit bitset indicating which 16-byte
words are ASCII (0000-007F), load a shuffle mask, permute and patch.

UTF-16 to UTF-8 (0000-07FF, E000-FFFF)

If all 16-bit words are in the ranges 0000-D7FF, E000-FFFF, we use another similar specialized routine to produce sequences of one-byte, two-byte and three-byte UTF-8 characters.

Otherwise, when we detect that the input register contains at least one part of a surrogate pair, we fall back to a conventional/scalar code path.

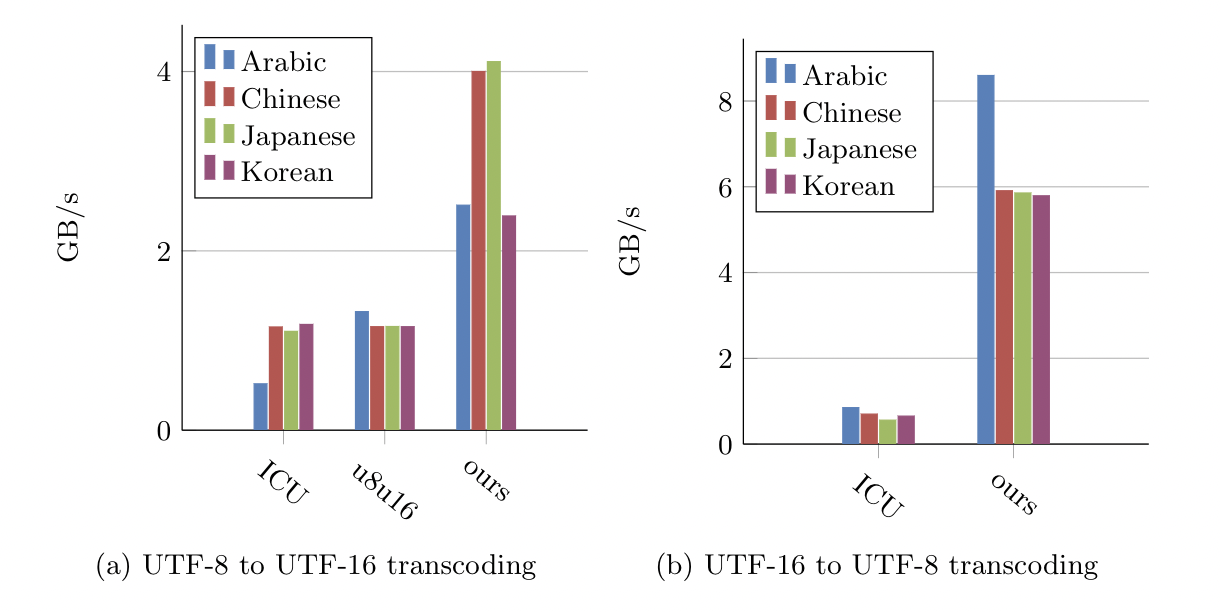

Experiments

  • AMD processor (AMD EPYC 7262, Zen 2 microarchitecture, 3.39 GHz) and GCC10.
  • International Components for Unicode (UCI)
  • u8u16 library
  • lipsum text in various languages

ASCII transcoding

UTF-8 to UTF-16 UTF-16 to UTF-8
simdutf 20 GB/s 36 GB/s
UCI 1 GB/s 2 GB/s

Software

https://github.com/simdutf/simdutf

  • Open source, no patent.
  • ARM NEON, SSE, AVX...
  • Support runtime dispatch: adapts to your CPU.
  • Easy to use: drop simdutf.cpp and simdutf.h in your project.
  • Compiles to tens of kilobytes.
