Make Your Code Faster with Data Parallelism

Daniel Lemire, professor
Université du Québec (TÉLUQ)
Montréal

blog: https://lemire.me
X: @lemire
GitHub: https://github.com/lemire/

Where I am coming from

• Author of libraries you are probably running right now: simdjson, simdutf, fast_float, Roaring Bitmaps.
• Shipped inside .NET, Rust, Go, Node.js, Bun, Deno, Google Chrome, Safari, ClickHouse.
• Node.js core contributor (C++ review, performance, security).
• Editor, Software: Practice and Experience (Wiley, founded 1971).

Part 1

Parallelism for the win

Some numbers

• Time is discrete: the clock cycle
• Processors: ~4 GHz
• One cycle is 0.25 nanoseconds
• Light travels 7.5 cm per cycle
• One byte per cycle is only 4 GB/s

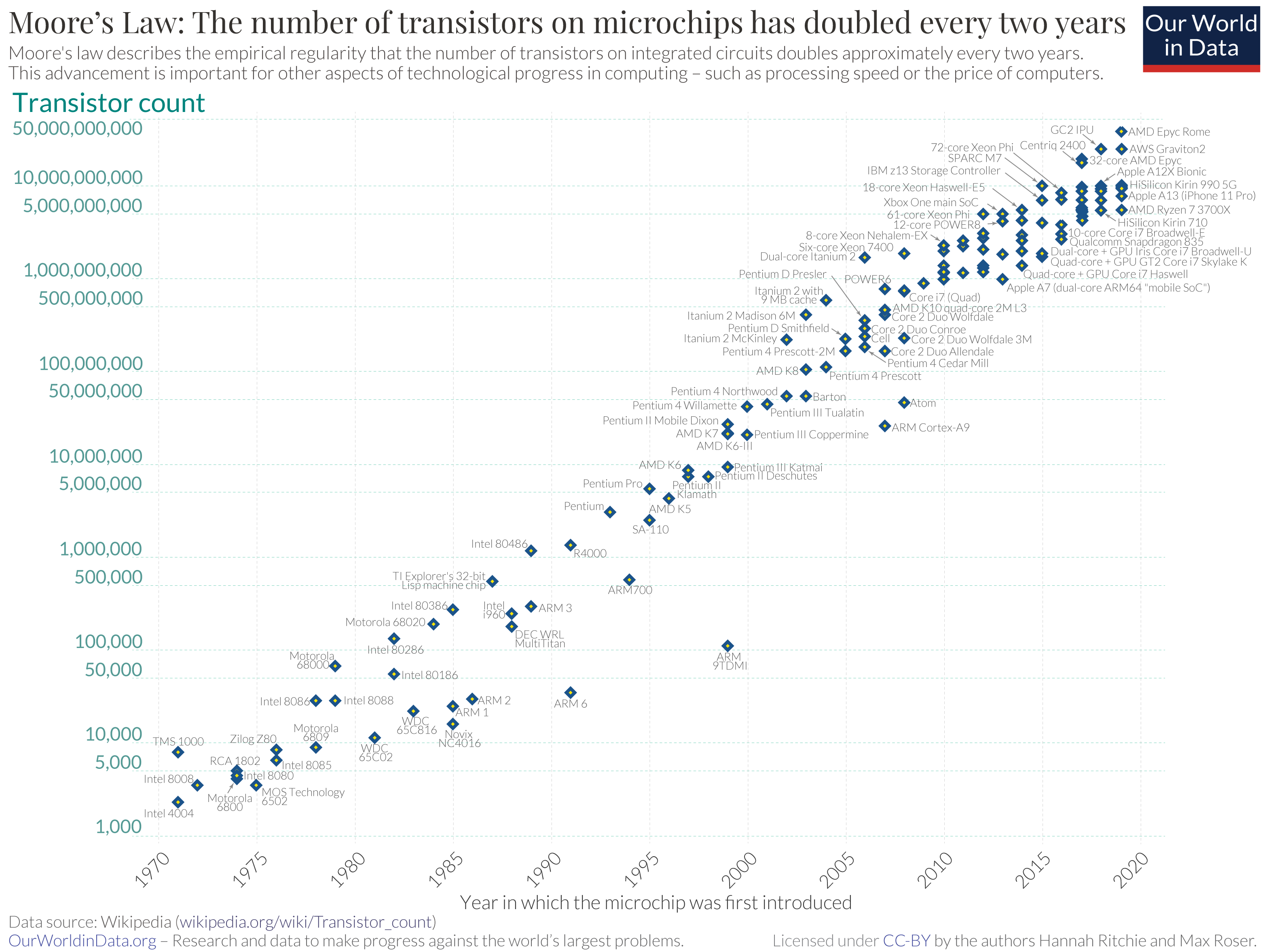

Frequencies and transistors

Frequency: +50% in 25 years. Transistors: 1000×.

Where do the transistors go?

• More cores
• More superscalar execution (more instructions per cycle)
• Better speculative execution ( more instructions per cycle)
• More cache, more memory-level parallelism ( more instructions per cycle)
• Better data-level parallelism (SIMD) ( fewer instructions)

The last one is different: the hardware does not do it for you.

Doubles every 3 years

Disk at gigabytes per second

• Sony PlayStation 5 (2020): 5 GB/s
• Sony PlayStation 6 (2027): 15 GB/s (?)

High Bandwidth Memory

The squeeze

• Your storage delivers gigabytes per second.
• Your memory delivers hundreds of gigabytes per second.
• Your software processes bytes one at a time.

You are CPU bound.

Zen 5 AWS (EPYC 9R45, c8a)

• STREAM single thread bandwidth: 46 GB/s
• strstr, 32-byte needle: 9.5 GB/s

Part 2

The kinds of parallelism

1. Multicore

• The one everyone knows.
• Hard: synchronization, false sharing, non-determinism.
• Does nothing for a single request that must finish in 2 ms.
• Multiplies your energy bill by the number of cores.

Do this last, not first.

2. Superscalar and speculative execution

Processors predict branches and execute code speculatively. A misprediction costs 10–20 cycles.

How much can your processor learn?

Apple M4 can learn 10,000 random (0/1) branches

1. Benchmark over massive inputs, or you are measuring the branch predictor's memory.
2. Prefer a branchless solution when it costs you nothing.

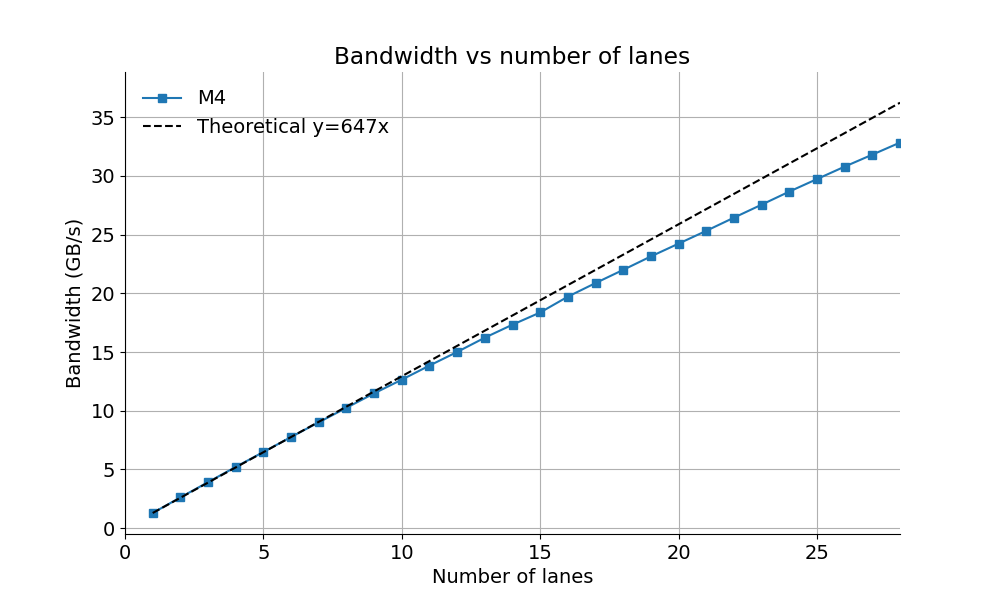

3. Memory-level parallelism

• Latency to RAM: ~100 ns (400 cycles).
• But you can have dozens of loads in flight at once.

cycle	action	action	pizza en route
1	order pizza A
2	order pizza B		A
3	order pizza C		A, B
4	order pizza D	eat pizza A	B, C
5	order pizza E	eat pizza B	C, D

Little's Law

• Latency harms throughput
• Parallelism hides latency

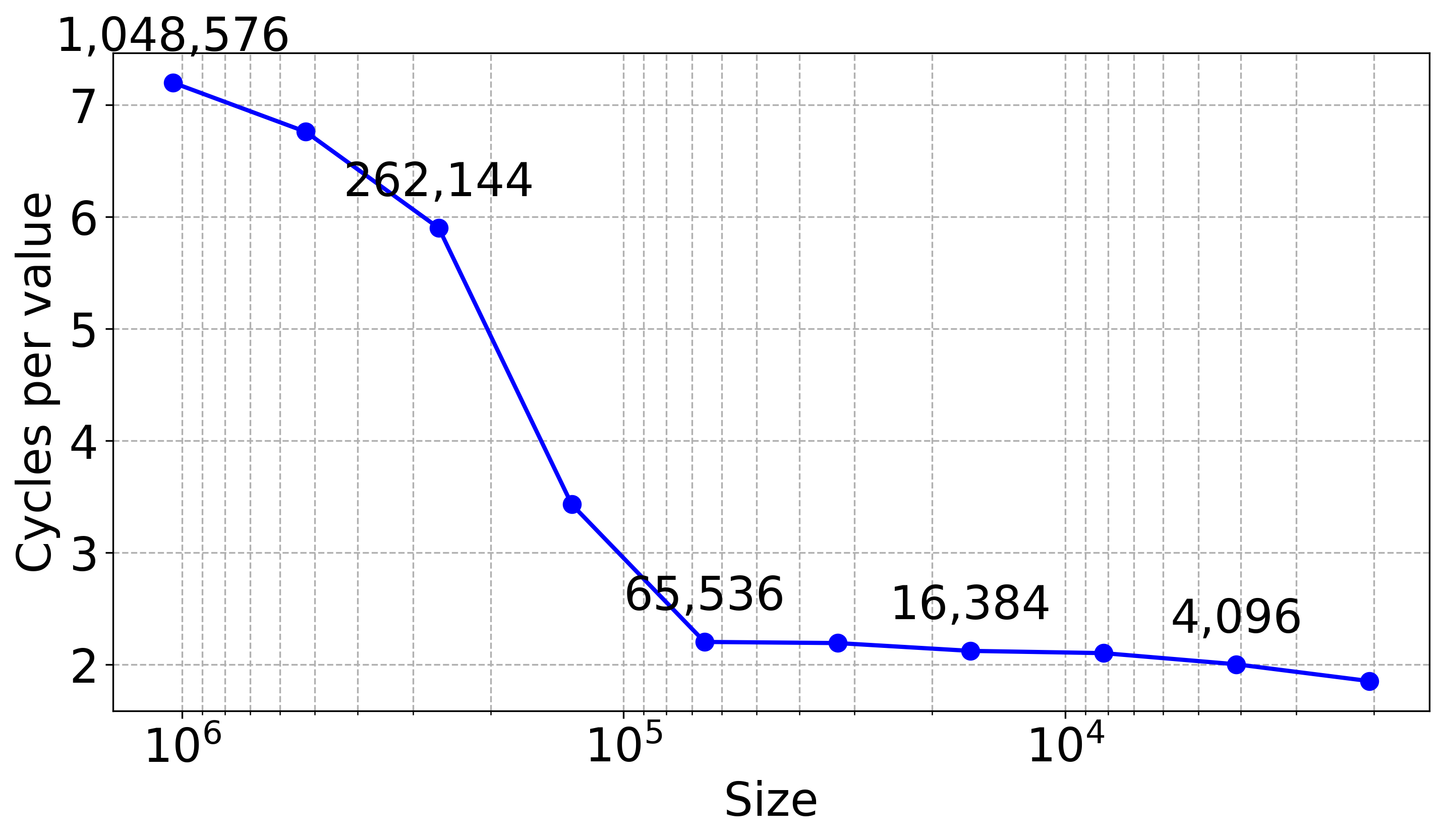

Bloom filter

Restructure the queries so several memory accesses are in flight at once.

Bloom filter (Intel Ice Lake, out-of-cache)

Same algorithm. Same hash functions. Different memory access pattern.

4. Data-level parallelism

The rest of this talk

Part 3

SIMD and SWAR

SIMD (Single Instruction, Multiple Data)

• Process 16, 32 or 64 bytes with one instruction
• Supported on every modern CPU — your phone included
• Not a niche feature: it is most of the silicon area of a modern core

The instruction sets

• x64: SSE2 (baseline, 128-bit), AVX2 (256-bit), AVX-512 (512-bit)
• ARM: NEON (128-bit, baseline on ARMv8), SVE/SVE2 (scalable)
• RISC-V: RVV (scalable)
• POWER: AltiVec/VSX · LoongArch: LSX, LASX
• WebAssembly: 128-bit SIMD, in every browser

Portability is mostly solved: compile several kernels, dispatch at runtime on CPU features. C++26 adds data-parallel types (std::simd).

SWAR: SIMD within a register

• Use plain 64-bit integer instructions
• A 64-bit register holds 8 bytes
• Fully portable C, C++, Rust, Go, Java...
• No intrinsics, no dispatch, no #ifdef
• Requires some cleverness

A great place to start.

Check whether we have 8 digits

In ASCII/UTF-8, the digits 0, 1, ..., 9 have values
0x30, 0x31, ..., 0x39.

To recognize a digit:

• The high nibble should be 3.
• The high nibble should remain 3 if we add 6 (0x39 + 0x6 is 0x3f)

 // load 8 input bytes into val
 bool is_made_of_eight_digits_fast(uint64_t val)  noexcept  {
  return !((((val + 0x4646464646464646)
          | (val - 0x3030303030303030))
          & 0x8080808080808080));
 }

compiles to

add     rax, rdi
add     rdi, rdx
or      rax, rdi
test    rax, rdx

Four instructions for eight characters, and no branch.

Part 4

Case studies

Case study: parsing a number

• 1.3321321e-12 to double

double result;
fast_float::from_chars(
  input.data(), input.data() + input.size(), result);

• Used by major browsers (Safari, Chrome), GCC (12+), C#, Rust, MySQL, Go, Python
• About faster than the conventional alternatives

We massively reduced the number of CPU instructions required.

Reference:
Number Parsing at a Gigabyte per Second, Software: Practice and Experience 51 (8), 2021

https://github.com/fastfloat/fast_float

The lesson

• We did not make the instructions faster.
• We removed instructions.
• Data parallelism is an instruction-count strategy.

Case study: 64 characters, 3 instructions

ASCII to lower case

For each character c
    If c - 'A' <= 'Z' - 'A' then
        c = c + 'a' - 'A'
    EndIf
EndFor

One byte per iteration. One unpredictable branch per byte.

64 characters in 3 instructions

• Compute

__m512i ca = _mm512_sub_epi8(c, _mm512_set1_epi8('A'));

• Turn into a mask

__mmask64 is_upper = _mm512_cmple_epu8_mask(ca, _mm512_set1_epi8('Z' - 'A'));

• Add to according to the mask

__m512i result = _mm512_mask_add_epi8(c, is_upper, c, to_lower);

No branch at all.

Let us check with llvm-mca

• llvm-mca is a static machine-code analyzer shipped with LLVM
• Feed it assembly, name a microarchitecture, get a cycle estimate
• No hardware required, no noise, no warm-up

llvm-mca -mcpu=icelake-server -iterations=100 kernel.s

The scalar loop: 1 byte per iteration

movzbl  (%rdi,%rax), %ecx
leal    -65(%rcx), %edx
cmpb    $26, %dl
jae     .LBB1_2
addb    $32, %cl
movb    %cl, (%rdi,%rax)
addq    $1, %rax
cmpq    %rax, %rsi
jne     .LBB1_1

The AVX-512 loop: 64 bytes per iteration

vmovdqu64  (%rdi,%rax), %zmm2
vpsubb     %zmm0, %zmm2, %zmm3
vpcmpub    $2, %zmm1, %zmm3, %k1
vpaddb     %zmm4, %zmm2, %zmm2 {%k1}
vmovdqu64  %zmm2, (%rdi,%rax)
addq       $64, %rax
cmpq       %rax, %rsi
jne        .LBB0_1

llvm-mca says...

                             scalar        AVX-512
Iterations:                     100            100
Instructions:                   900            800
Total Cycles:                   206            216
uOps Per Cycle:                4.37           4.63
IPC:                           4.37           3.70

• Bytes processed: 100 vs 6400
• Cycles per byte: 2.06 vs 0.034

About 60× fewer cycles per byte.

Read that table again

• The scalar loop has the higher IPC (4.37 vs 3.70).
• The scalar loop retires more instructions per cycle.
• The scalar loop is 60× slower.

IPC is not a performance metric. It is a diagnostic.

What llvm-mca will not tell you

• It assumes perfect branch prediction — the scalar loop's real cost is worse.
• It assumes every load hits L1 — real code will be memory bound.
• It models one microarchitecture at a time.

Use it to explain a measurement, not to replace one.

Case study: JSON

JSON

• Portable, simple, human-readable; used by ~97% of API requests
• Strings (escaped), numbers, objects, arrays
• Reading and writing JSON is often slow: 100 MB/s to 300 MB/s
• Slower than a fast disk or a fast network

$ go run parse_twitter.go
Parsed 0.63 GB in 6.961 seconds (90.72 MB/s)

"But JSON parsing is inherently serial"

• Every byte can change the meaning of every following byte.
• Strings contain escapes; escapes contain quotes.
• It is a textbook state machine.

This was the conventional wisdom. It was wrong.

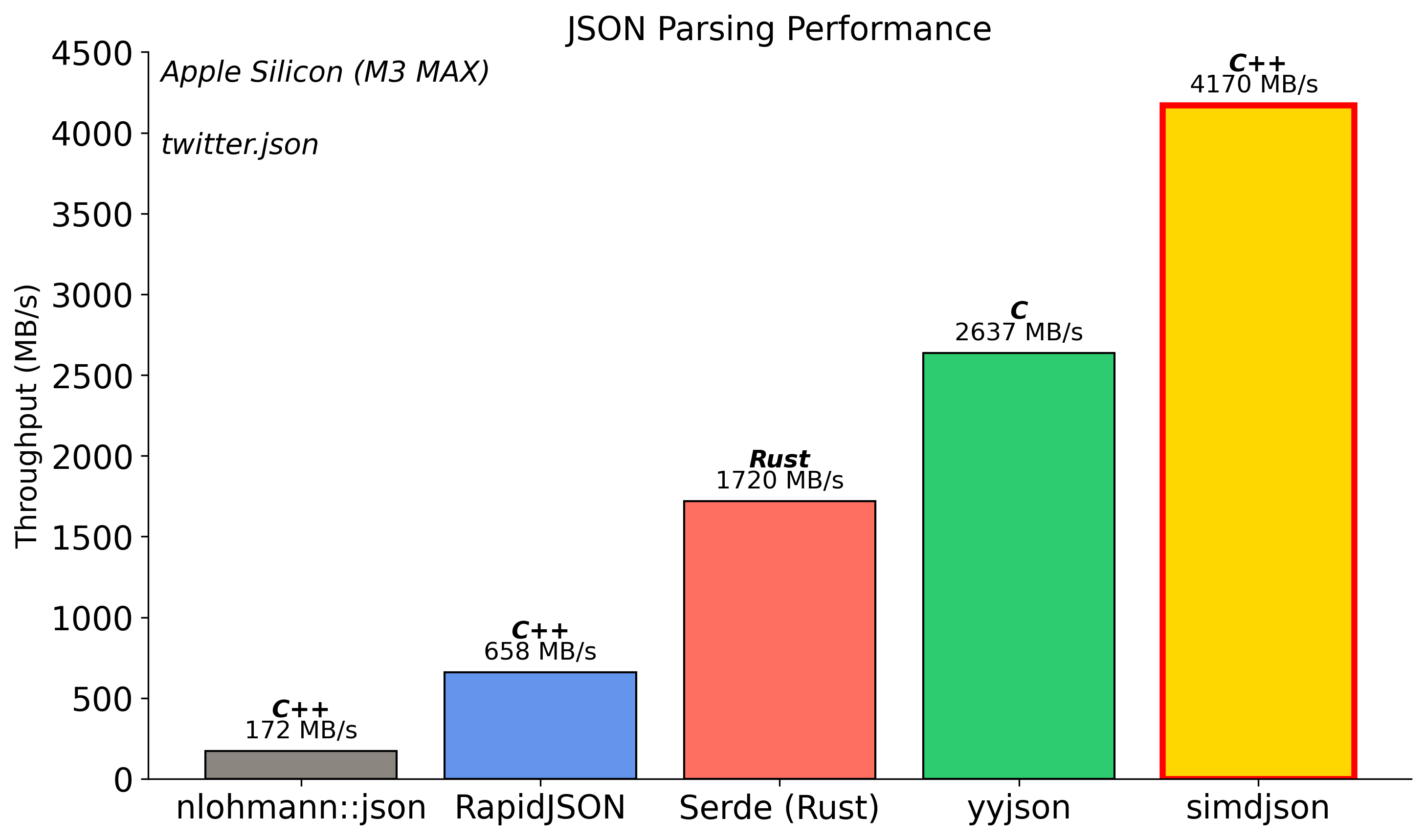

• openbenchmarking.org
• 14 GB/s, at less than 5.7 GHz
• Parsing JSON at better than 2.5 bytes per cycle

You are probably using simdjson

• Node.js, Bun, Deno, Electron
• ClickHouse
• WatermelonDB, Apache Doris, Meta Velox, Milvus, QuestDB, StarRocks

Every major JavaScript engine parses JSON with SIMD

• JSON.parse in Node.js, Bun and Deno is data-parallel.
• Billions of calls per second worldwide.
• Nobody had to change a single line of JavaScript.

simdjson: two-stage design

Stage 1 (data-parallel): scan the whole document with SIMD

• find every structural character and the start of every string
• validate UTF-8
• produce an index

Stage 2 (mostly serial): walk the index and build values

• the hard, branchy work now runs on ~5% of the bytes

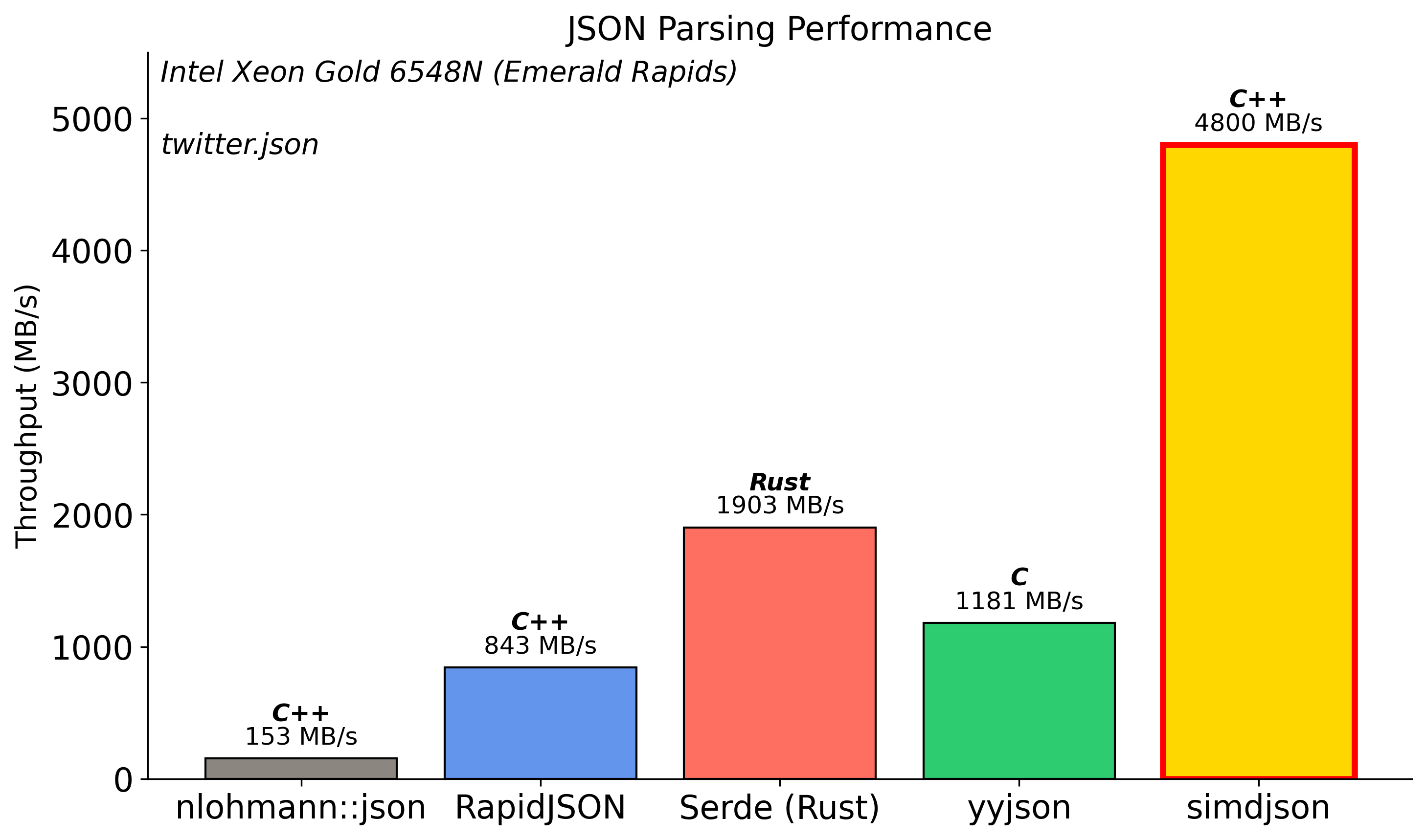

simdjson: the numbers

• Structural scan: about 10 GB/s
• UTF-8 validation: about 30 GB/s
• Minification: 10 to 20 GB/s
• Fast skipping: only parse what you actually read

Classifying characters

We need to sort every byte into a class:

• comma (0x2c) ,
• colon (0x3a) :
• brackets (0x5b, 0x5d, 0x7b, 0x7d): [, ], {, }
• white-space (0x09, 0x0a, 0x0d, 0x20)
• everything else

A switch statement per byte? No.

Vectorized classification

• Most SIMD instruction sets support 'vectorized lookup tables' (at least 16-element)
• With a 256-element table we could just compute H(c)
• With 16-element tables, we need two tables H1 and H2
• Find H1 and H2 such that the bitwise AND of the lookups classifies the character:
  H1(c & 0xf) & H2(c >> 4)

low_nibble_mask  = {16, 0, 0, 0, 0, 0, 0, 0, 0, 8, 12, 1, 2, 9, 0, 0};
high_nibble_mask = {8, 0, 18, 4, 0, 1, 0, 1, 0, 0, 0, 3, 2, 1, 0, 0};

Five instructions, 16 to 64 bytes at a time:

    nib_lo  = input & 0xf;
    nib_hi  = input >> 4;
    shuf_lo = lookup(low_nibble_mask, nib_lo);
    shuf_hi = lookup(high_nibble_mask, nib_hi);
    return shuf_lo & shuf_hi;

This trick generalizes: any 256-way classification into 8 classes.

Serialization is also a data-parallel problem

• JSON requires escaping ", \, and control characters.
• Almost no string actually needs escaping.
• So: check 16 to 64 bytes at once, and take the fast path.

SIMD string escaping

Traditional (1 byte at a time):

for (char c : str) {
    if (c == '"' || c == '\\' || c < 0x20)
        return true;
}

SIMD (64 bytes at once):

auto chunk = load_64_bytes(str);
auto needs_escape = check_all_conditions_parallel(chunk);
if (!needs_escape)
    return false;  // Fast path!

C++26 compile-time reflection

One line each way (C++26)

struct Player {
    std::string username;
    int level;
};

Player load_player(std::string& json_str) {
    return simdjson::from(json_str);
}

std::string save_player(const Player& p) {
    return simdjson::to_json(p);
}

No macros. No code generation step. No runtime reflection cost.

Deserialization (Apple Silicon)

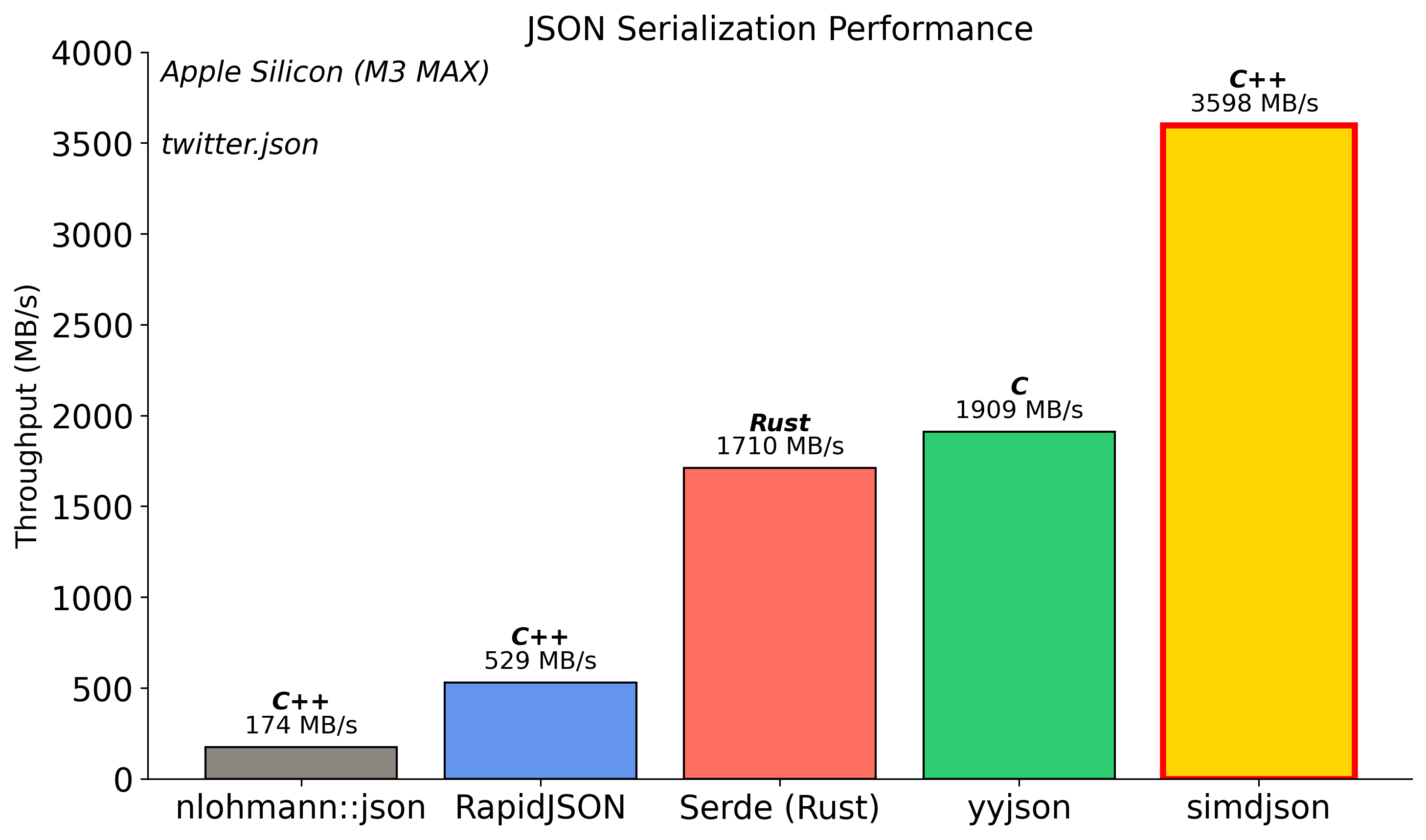

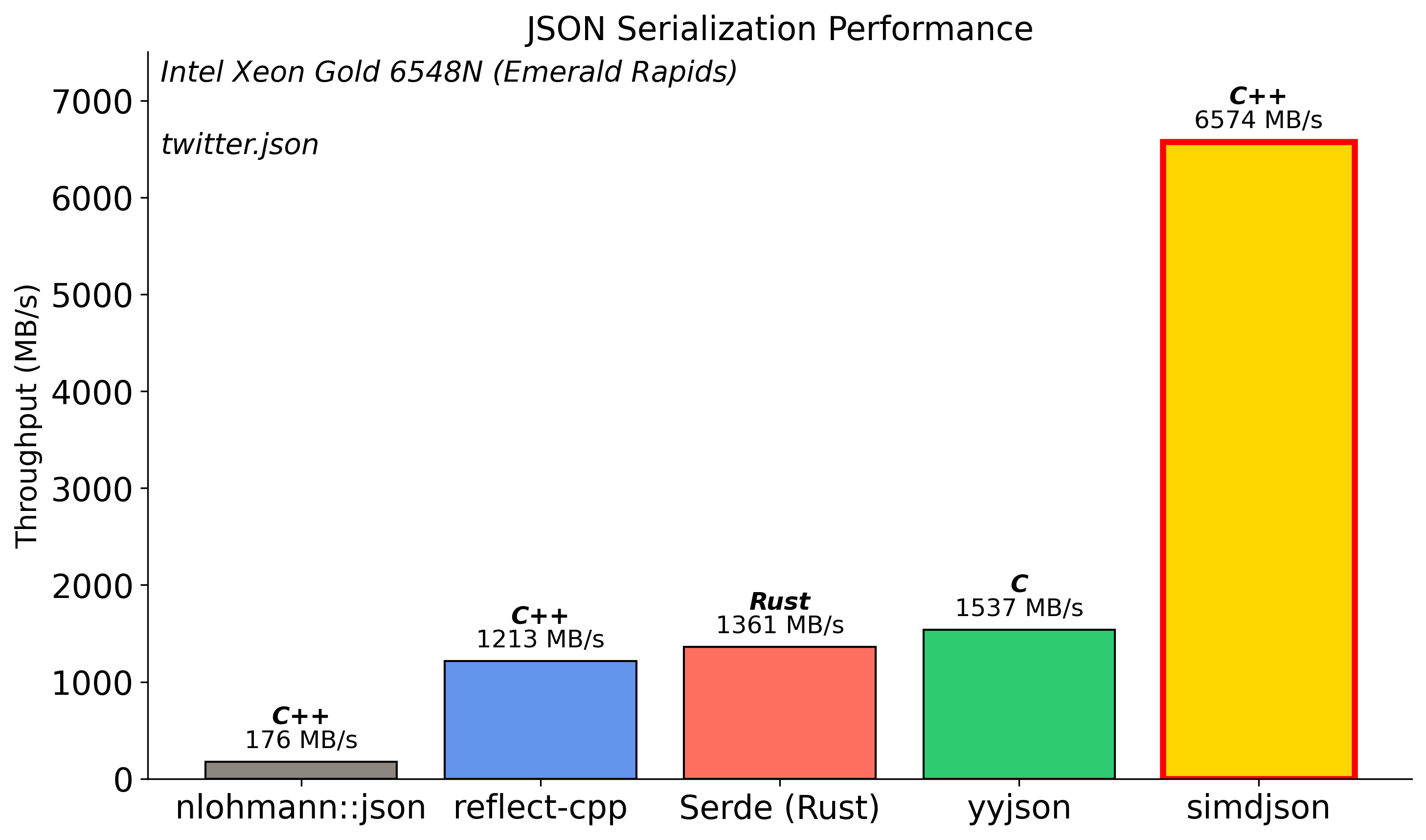

Serialization (Apple Silicon)

Case study: Unicode

simdutf

• Inside Safari, Chrome, Node.js, Bun
• Unicode transcoding and validation at gigabytes per second
• Base64 too
• x64, ARM, POWER, RISC-V, LoongArch

Unicode (UTF-16)

• Code points from U+0000 to U+FFFF: a single 16-bit value.
• Beyond: a surrogate pair, U+D800–U+DBFF followed by U+DC00–U+DFFF.
• A lone surrogate makes the string ill-formed.

Every JavaScript string, every Java string, every Windows filename.

Validate

PROCEDURE validate_utf16(code_units)
    i ← 0
    WHILE i < |code_units|
        unit ← code_units[i]
        IF unit ≤ 0xD7FF OR unit ≥ 0xE000 THEN
            INCREMENT i
            CONTINUE
        IF unit ≥ 0xD800 AND unit ≤ 0xDBFF THEN
            IF i + 1 ≥ |code_units| THEN
                RETURN false
            next_unit ← code_units[i + 1]
            IF next_unit < 0xDC00 OR next_unit > 0xDFFF THEN
                RETURN false
            i ← i + 2  // Valid surrogate pair
            CONTINUE
        RETURN false
    RETURN true

Performance results (Apple M4)

1 character per cycle might be just 4 GB/s — slower than your disk.

Now make the input adversarial

We are now barely at 1 GB/s. The branch predictor was doing the work.

Finite state machine to the rescue

static uint8_t transition_table[3][256] = { {...}, {...}, {...} };

bool is_valid_utf16_ff(std::span<uint16_t> code_units) {
    uint8_t state = 0; // Start in Initial state
    for (auto code_unit : code_units) {
        uint8_t high_byte = code_unit >> 8;
        state = transition_table[state][high_byte];
    }
    return state == 0; // Valid only if we end in Initial state
}

Three states: default, just saw a high surrogate, error. No branches.

The finite-state approach can be faster

But we can do better than validation

const str = "ab\uD800";
console.log(str.toWellFormed());
// "ab�"

String.prototype.toWellFormed() must copy and repair, not merely check.

UTF-16, random (adversarial), Apple M4

The SIMD correction function (which copies the data) beats the non-SIMD validation function.

UTF-16 correction, Apple M4

13× fewer instructions per byte.

In the browser (Apple M4)

• Chromium: 16 GB/s (uses our new function)
• Firefox: 3.4 GB/s
• Safari: 1.2 GB/s

Test it yourself: https://lemire.github.io/browserwellformed/

Case study: base64

Base64

• Encodes binary data as text using 64 characters (A-Z, a-z, 0-9, +, /)

• 3 bytes input → 4 characters output (33% overhead)

• Data URLs, email, JWTs, web APIs, embedded images

• "Hello, World!" → SGVsbG8sIFdvcmxkIQ==

Bit manipulation on a fixed schedule: the ideal SIMD problem.

New JavaScript functions

const b64 = Uint8Array.prototype.toBase64(bytes);
const recovered = Uint8Array.fromBase64(b64);

Test in your browser: https://simdutf.github.io/browserbase64/

AVX-512 base64 encoding

• Encoding a 64-byte block requires only two non-memory instructions:
  vpermb (twice) and vpmultishiftqb.
• The right instruction turns an algorithm into a lookup.

Part 5

Why your compiler will not do this for you

Auto-vectorization: the good case

Successive differences: out[i] = in[i] - in[i-1]

Scalar: 1 cycle per element, 6 instructions per element.

Auto-vectorization: the good case

Vectorized: 0.25 cycles per element, 0.9 instructions per element. 4× faster, for free.

Note the instructions per cycle went down, from 6 to 3.8.

But look at the prefix sum

• out[i] = out[i-1] + in[i]
• Same shape of loop. Same data. Same compiler.
• Unchanged: 1 cycle per element, in both builds.
• There is a loop-carried dependency, so the compiler gives up.

And yet the prefix sum does vectorize

• Shift-and-add, steps: a classic parallel-prefix network.
• The compiler cannot invent it, because it is a different algorithm, not a different schedule.

This is the whole talk in one slide.

What compilers can do

• Unroll loops
• Vectorize simple, dependency-free, contiguous loops
• Choose instruction schedules

What compilers cannot do

• Change your data layout
• Change your algorithm
• Decide that a rare case can be handled on a slow path

Unrolling is not vectorizing

Fewer cycles, yes. But you are still touching one element at a time.

Part 6

Can an LLM write your SIMD code?

The honest answer: partly

Frontier models in 2026 are genuinely good at:

• Recalling intrinsic names and semantics (better than I am)
• Translating a working NEON kernel to AVX2, or to RVV
• Writing the scalar reference implementation and the test harness
• Explaining an unfamiliar instruction

Where they still struggle

• Inventing the vectorized algorithm (the nibble-lookup trick, the prefix network)
• Reasoning about throughput vs. latency and port pressure
• Knowing that a 512-bit instruction may downclock the core
• Noticing that the fast path is fast only on your data

They optimize what you measured. They do not choose what to measure.

What actually works: close the loop

Give the agent the three things it cannot produce on its own:

1. A benchmark it can run, over realistic inputs
2. A differential fuzzer against a scalar reference
3. llvm-mca (or perf) so it can see cycles, not vibes

Then let it iterate.

A workable prompt shape

Here is a scalar reference implementation and a fuzzer that
compares any candidate against it.

Here is a benchmark: `make bench` prints cycles per byte.

Write an AVX2 version. After each attempt, run the fuzzer and
the benchmark, and run llvm-mca on the inner loop. Do not stop
until the fuzzer passes and cycles/byte is below 0.2.

The constraint is the contribution. The agent supplies the patience.

The failure mode to watch for

• An agent will happily produce SIMD code that is correct on your test inputs and wrong on the surrogate pair, the truncated block, the empty string, the 63-byte tail.
• Tail handling is where hand-written SIMD goes to die, and LLMs inherit that.
• Fuzz the tails. Fuzz the alignment. Fuzz the adversarial input.

The division of labour

Part 7

Measure properly, or do not bother

Measurements

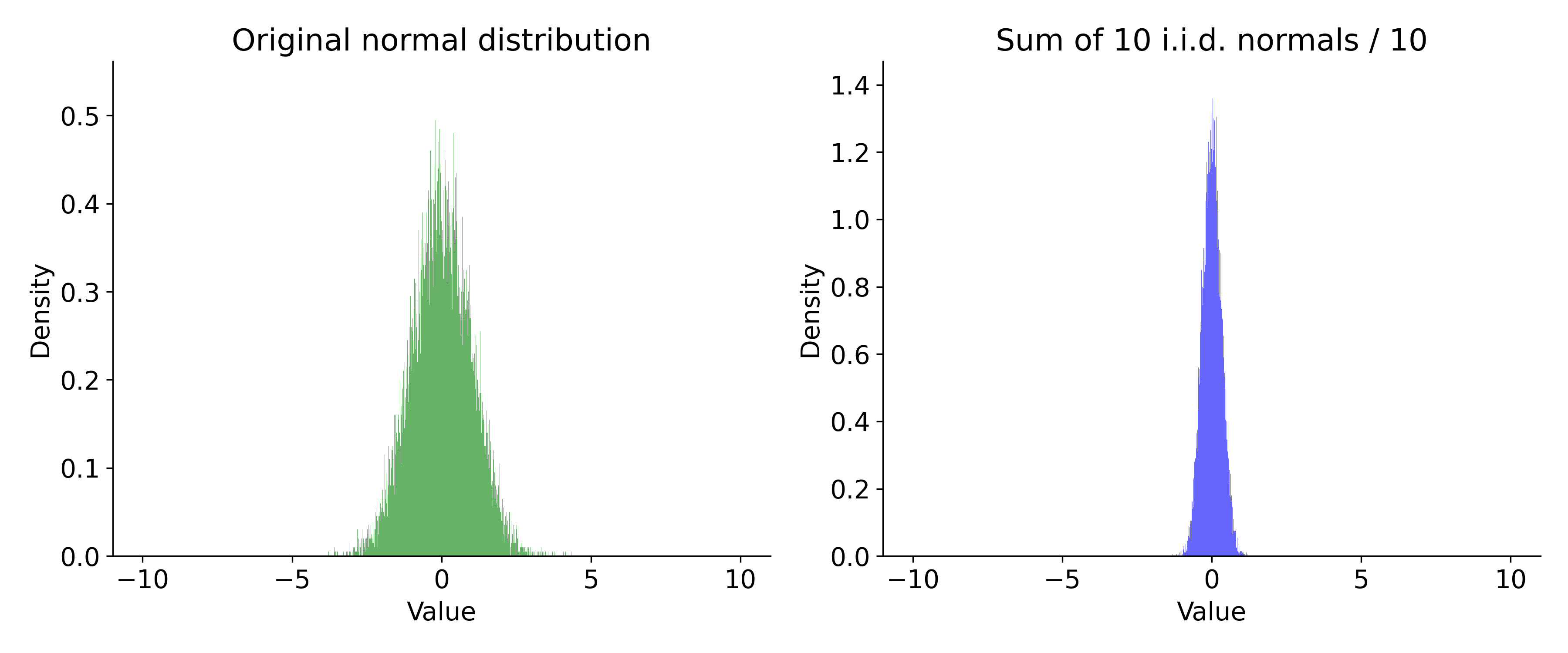

• We often assume that measurements (timings) are normally distributed.
• If they were, the 'error' would fall off as .
• It is often an incorrect assumption.

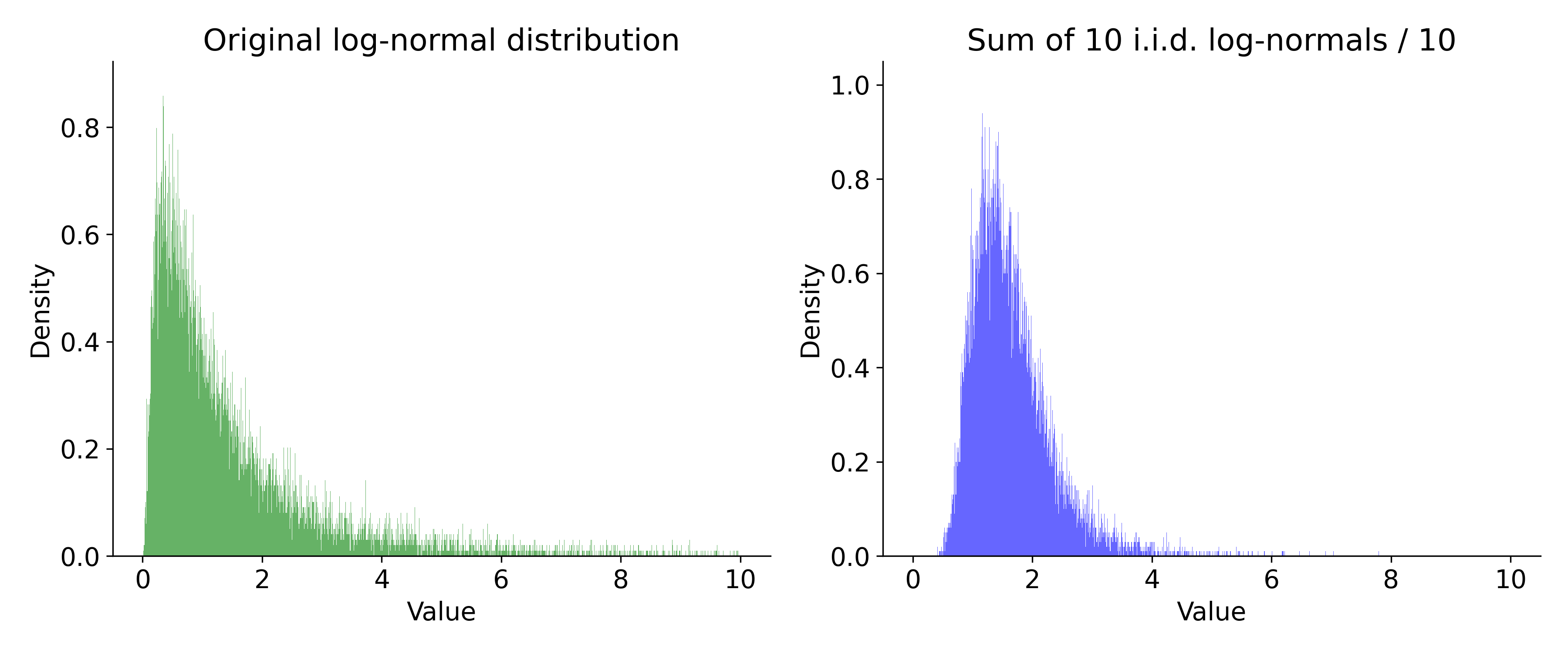

What if we dealt with log-normal distributions?

Real-world measurements

• You cannot assume normality
• Measurements are not independent
• Reality: the absolute minimum is often the reliable metric
• Margin: the difference between the mean and the minimum

Use performance counters

Timings tell you that something is slow. Counters tell you why.

• instructions retired — did I actually remove work?
• cycles — the ground truth
• branch misses — is the predictor carrying me?
• cache misses — am I memory bound after all?

perf stat, Instruments, or a library such as performancecounters.

The diagnostic table I always build

If instructions/byte did not drop, you did not do data parallelism.
If cycles/byte did not drop, find out which counter did move.

Hot-spot engineering fails

• A profiler shows you where the cycles are now.
• It does not show you the 30% of instructions spread evenly over every function.
• Reducing the total instruction count beats optimizing the top-of-profile function.

When is data parallelism worth it?

Good signs

• You touch every byte or every element
• The work per element is small and uniform
• You have an unpredictable branch per element
• You are validating, scanning, transcoding, filtering, or counting

Bad signs

• Deep pointer chasing
• Genuinely irregular control flow with expensive bodies
• You are already memory bound at full bandwidth

It applies more often than you think

• JSON parsing — every JavaScript engine
• Unicode validation — every browser
• base64 — the JavaScript standard library
• Number parsing — every compiler toolchain
• Bitmap indexes, hashing, compression, memchr, CSV, regex prefiltering

"Inherently serial" is usually a statement about the algorithm you happen to know.

What to take home

1. Clock speeds are flat; parallelism is where performance lives.
2. Data parallelism reduces instructions, not just time.
3. Your compiler schedules; it does not redesign. That part is yours.
4. Branchy code looks great in a synthetic benchmark and dies on real data.
5. IPC is a diagnostic, not a goal. The minimum time is your metric.
6. AI agents are excellent hands and mediocre architects — give them a benchmark and a fuzzer.

Interested? Check these projects

• simdjson — the fastest JSON parser in the world https://simdjson.org
  • Node.js, Bun, Deno, Electron
  • ClickHouse, WatermelonDB, Apache Doris, Meta Velox, Milvus, QuestDB, StarRocks
• simdutf — Unicode (UTF-8/16/32) and base64 https://github.com/simdutf/simdutf
  • Node.js, Bun, WebKit (Safari), Chromium (Chrome, Edge)
• fast_float — number parsing https://github.com/fastfloat/fast_float
• Roaring Bitmaps — https://roaringbitmap.org

Credit

• simdjson reflection work with Francisco Geiman Thiesen (Microsoft)
• simdutf UTF-16 correction is joint work with Robert Clausecker
• simdjson and simdutf are community efforts (Geoff Langdale, John Keiser, Paul Dreik, Yagiz Nizipli and others)

Questions?

Daniel Lemire — lemire.me

X: @lemire · GitHub: github.com/lemire
