Algorithms for Modern Processor Architectures

Daniel Lemire, professor
Université du Québec (TÉLUQ)
Montréal

blog: https://lemire.me
X: @lemire
GitHub: https://github.com/lemire/

All software for this talk: https://github.com/lemire/talks/tree/master/2025/sea/software

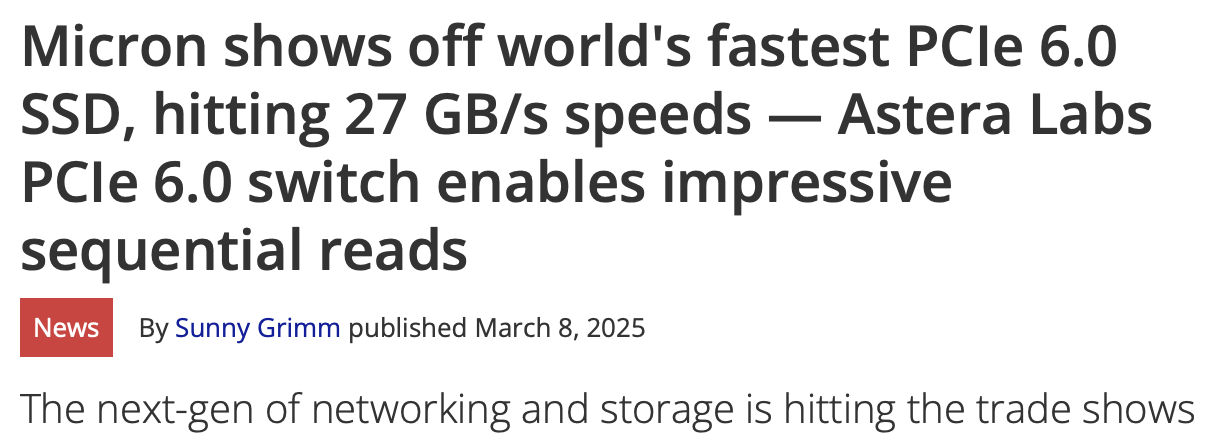

Disk at gigabytes per second

High Bandwidth Memory

• Xeon Max processors contain 64 GB of HBM
• Bandwidth 800 GB/s

Some numbers

• Time is discrete: clock cycle
• Processors: 4 GHz ( cycles per second)
• One cycle is 0.25 nanoseconds
• light: 7.5 centimeters per cycle
• One byte per cycle: 4 GB/s

Easily CPU bound

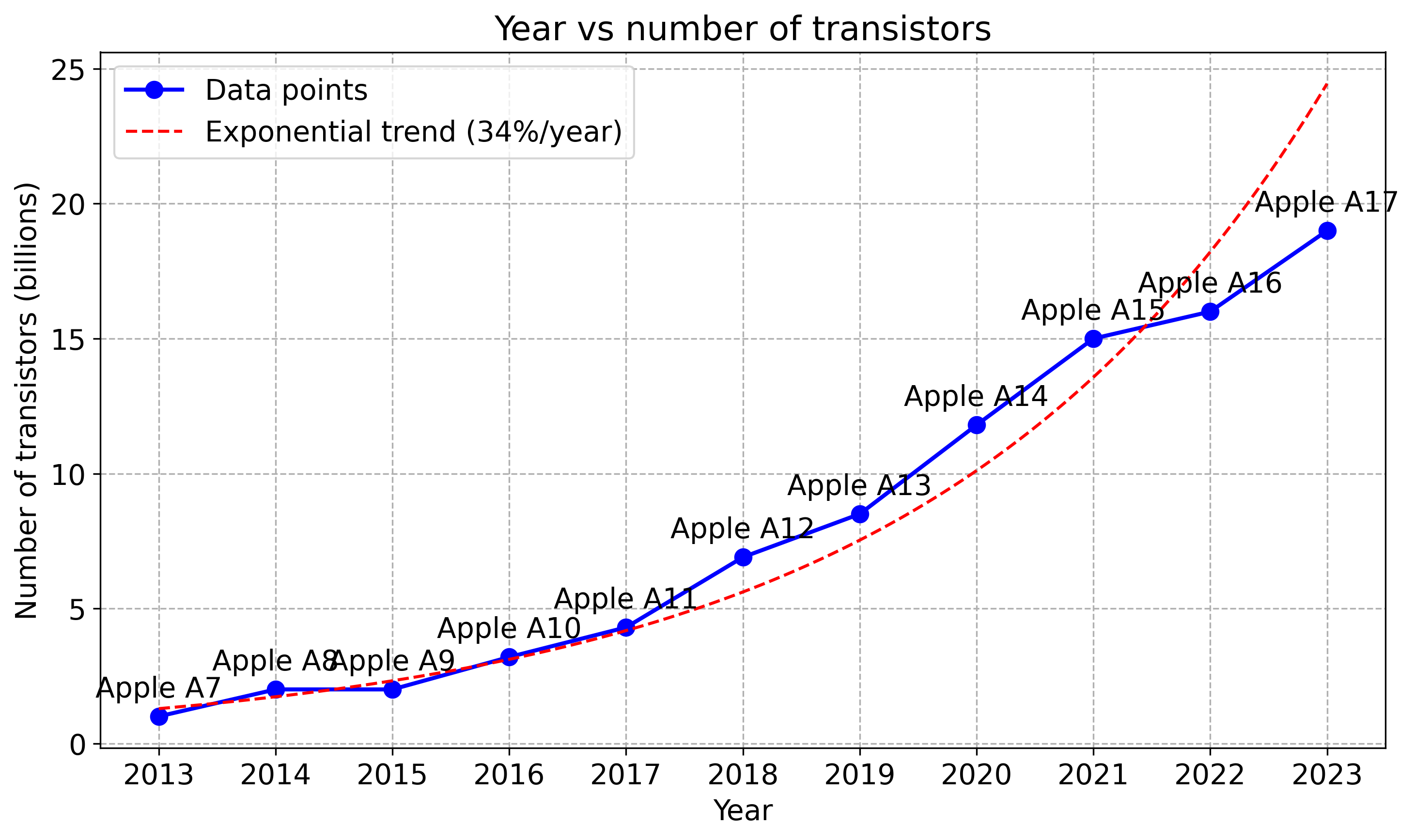

Frequencies and transistors

Where do the transistors go?

• More cores
• More superscalar execution
• Better speculative execution
• More cache, more memory-level parallelism
• Better data-level parallelism (SIMD)

Where do the transistors go?

• More cores
• More superscalar execution (more instructions per cycle)
• Better speculative execution ( more instructions per cycle)
• More cache, more memory-level parallelism ( more instructions per cycle)
• Better data-level parallelism (SIMD) ( fewer instructions)

Superscalar execution

Moving to up to 4 load/store per cycle

Parsing a number

• 1.3321321e-12 to double

double result;
fast_float::from_chars(
  input.data(), input.data() + input.size(), result);

Reference: Number Parsing at a Gigabyte per Second, Software: Practice and Experience 51 (8), 2021

Parsing a number

Lemire's Rule 1

Modern processors execute nearly as many instructions per cycle as you can supply.

• with caveats: branching, memory, and input/output

Lemire's Corrolary 1

In computational workloads (batches), minimizing instruction count is critical for achieving optimal performance.

Lemire's Tips

1. Batch your work in larger units to save instructions.
2. Simplify the processing down to as few instructions as possible.

Going back to number parsing

• Our number parser: major browsers (Safari, Chrome), GCC (12+), C#, Rust
• About faster than the conventional alternatives.
• How did we do it?

We massively reduced the number of CPU instructions required.

Reference:
Number Parsing at a Gigabyte per Second, Software: Practice and Experience 51 (8), 2021

SWAR

• Stands for SIMD within a register
• Use normal instructions, portable (in C, C++,...)
• A 64-bit registers can be viewed as 8 bytes
• Requires some cleverness

Check whether we have a digit

In ASCII/UTF-8, the digits 0, 1, ..., 9 have values
0x30, 0x31, ..., 0x39.

To recognize a digit:

• The high nibble should be 3.
• The high nibble should remain 3 if we add 6 (0x39 + 0x6 is 0x3f)

Batching (unrolling)

6 to 7 instructions per multiplication

  for (size_t i = 0; i < length; i++)
    sum +=  x[i] * y[i];

3 to 5 instructions per mutiplication

    for (; i < length - 3; i += 4)
      sum +=  x[i] * y[i]
             + x[i + 1] * y[i + 1]
             + x[i + 2] * y[i + 2]
             + x[i + 3] * y[i + 3];

Knuth's random shuffle

PROCEDURE shuffle(array)
    FOR j FROM $$|array| - 1$$ DOWN TO 1
        k ← random_integer(0, j)
        SWAP array[j] WITH array[k]
    END FOR
END PROCEDURE

Batched random shuffle

• Draw one random number
• Compute two indices (with high proba)
• Reduces the instruction count
• Reduces the number of branches

Results (Apple M4): Use a large array (8 MB).

Reference: Batched Ranged Random Integer Generation, Software: Practice and Experience 55 (1), 2025

Branching

Hard-to-predict branches can derail performance

Unicode (UTF-16)

• Code points from U+0000 to U+FFFF, a single 16-bit value.
• Beyond: a surrogate pair [U+D800 to U+DBFF] followed U+DC00 to U+DFFF

Validate

• Check for a lone code unit (), if so ok
• Check for the first part of the surrogate () and if so check that we have the second part of a surrogate

Validate

PROCEDURE validate_utf16(code_units)
    i ← 0
    WHILE i < $$|code_units|$$
        unit ← code_units[i]
        IF unit ≤ 0xD7FF OR unit ≥ 0xE000 THEN
            INCREMENT i
            CONTINUE
        IF unit ≥ 0xD800 AND unit ≤ 0xDBFF THEN
            IF i + 1 ≥ $$|code_units|$$ THEN
                RETURN false
            next_unit ← code_units[i + 1]
            IF next_unit < 0xDC00 OR next_unit > 0xDFFF THEN
                RETURN false
            i ← i + 2  // Valid surrogate pair
            CONTINUE
        RETURN false
    RETURN true

Performance results (Apple M4)

1 character per second might be just 4 GB/s (slower than disk)

Performance results (Apple M4)

We are now barely at 1 GB/s!

Speculative execution

• Processors predict branches
• They execute code speculatively (can be wrong!)

How much can your processor learn?

Finite state machine to the rescue

• Can identify characters by the most significant 8 bits.
• Trivial finite state machine: default, has just encountered a high surrogate, or error.

static uint8_t transition_table[3][256] = {
    {...},
    {...},
    {...}
};

bool is_valid_utf16_ff(std::span<uint16_t> code_units) {
    uint8_t state = 0; // Start in Initial state
    for (auto code_unit : code_units) {
        uint8_t high_byte = code_unit >> 8;
        state = transition_table[state][high_byte];
    }
    return state == 0; // Valid only if we end in Initial state
}

Performance results (Apple M4)

The finite-state approach can be faster!

Rules of thumb

1. Processors can 'learn' thousands of branches: benchmark over massive inputs.
2. Pick a solution without branches when it provides the same performance.

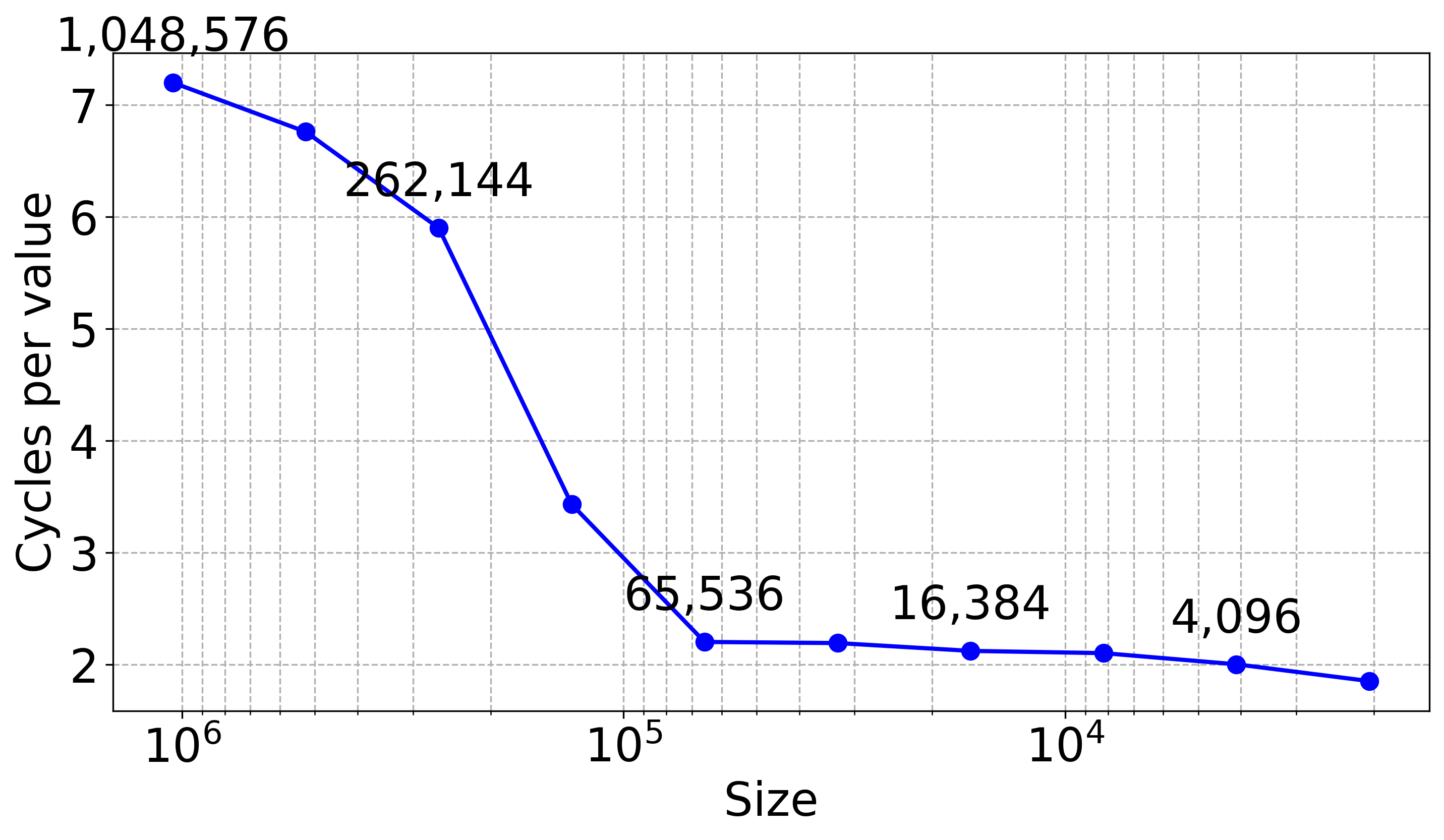

Apple M4 can learn 10,000 random (0/1) branches.

Pipelining

How does the processor manage to validate one UTF-16 character per cycle
when it takes many cycles just to load the character?

Little's Law

• Latency harms throughput
• Parallelism hides latency

Memory-level parallism

• Create large array of indices forming a cycle
• Start with [0,1,2,3,4]
• Shuffle so that no index can remain in place.
• Start with [4,0,3,2,1]
• Sandra Sattolo's algorithm
• This forms a random path

1 lane

2 lanes

Consequence

Bloom filter

Bloom filter

8 hash functions, (Intel Ice Lake processor, out-of-cache filter)

Less than half the cache misses

Bloom filter

Data-level parallelism

SIMD

• Stands for Single instruction, multiple data
• Allows us to process 16 (or more) bytes or more with one instruction
• Supported on all modern CPUs (phone, laptop)

ASCII to lower case

For each character c
    If c - 'A' < 'Z' - 'A' then
        c = c + 'a' - 'A'
    EndIf
EndFor

ASCII to lower case: 64 characters in 3 instructions

• Compute

__m512i ca = _mm512_sub_epi8(c, _mm512_set1_epi8('A'));

• Turn into a mask

__mmask64 is_upper = _mm512_cmple_epu8_mask(ca, _mm512_set1_epi8('Z' - 'A'));

• Add to according to mask

__m512i to_lower = _mm512_mask_add_epi8(c, is_upper, c, to_lower)

Deltas (C)

successive difference:

    for (size_t i = 1; i < n; ++i) {
        dst[i] = src[i] - src[i - 1];
    }

prefix sum:

    for (size_t i = 1; i < n; ++i) {
        dst[i] = dst[i - 1] + src[i];
    }

Apple M4

Now allow SIMD! (Autovectorization)

Need to learn SIMD design magic !

UTF-16

• Write SIMD correction function (not just validation)
• Actually deployed in v8 (Google Chrome, Microsoft Edge)

UTF-16, random (adversarial), Apple M4

• SIMD correction function (which copies the data) faster than the non-SIMD validation

• Most x64 processors have AVX2 (32-byte register)
• AMD Zen 5 has powerful AVX-512 (64-byte register)
• ARM has NEON + SVE/SVE2
• RISC-V has its vector instructions
• Loonson processes have AVX2-like instructions

Interested? Check these projects

• simdjson: The fastest JSON parser in the world https://simdjson.org

• simdutf: Unicode routines (UTF8, UTF16, UTF32) and Base64 https://github.com/simdutf/simdutf

Measurements

• We often assume that measurments (timings) are normally distributed.
• It is often an incorrect assumption.

Measurements

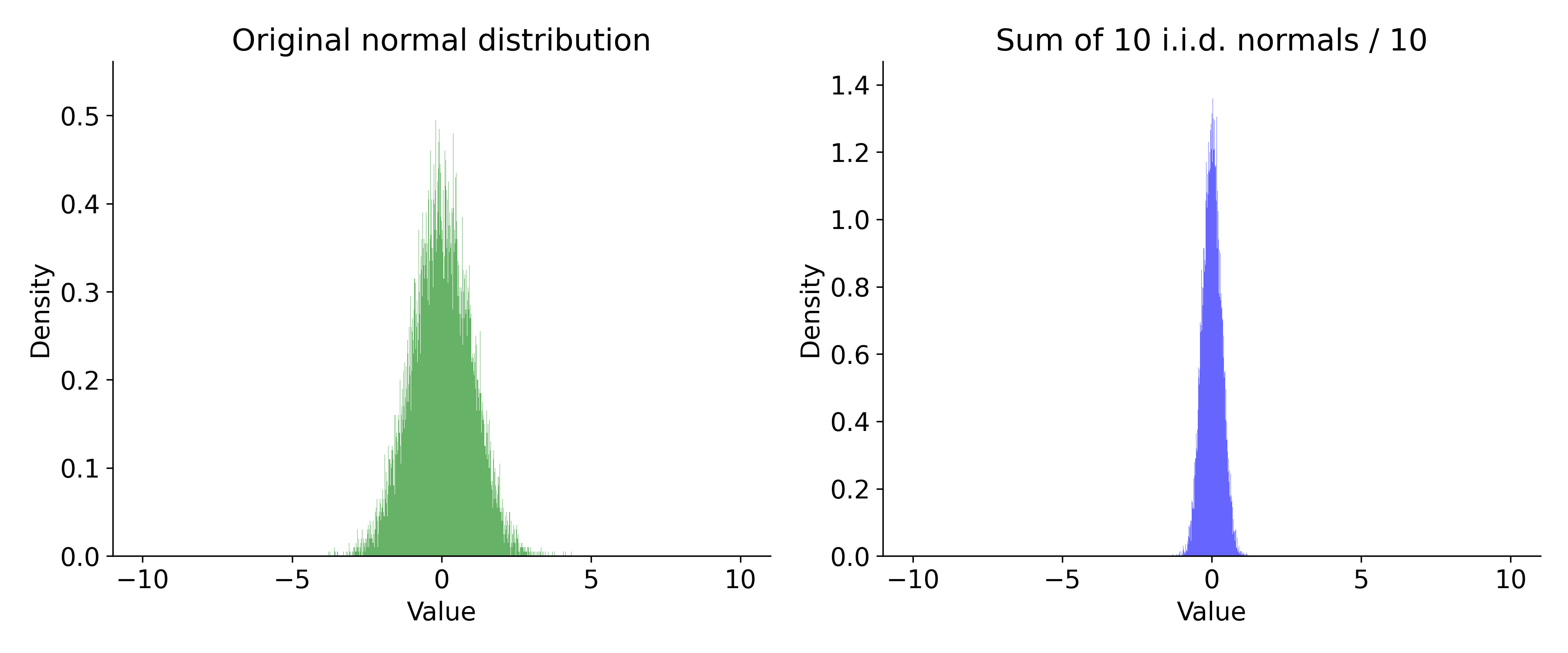

• If your measurements are normally distributed, the 'error' falls off as

Sigma events

• 1-sigma is 32%

• 1-sigma is 32%
• 2-sigma is 5%

• 1-sigma is 32%
• 2-sigma is 5%
• 3-sigma is 0.3% (once every 300 trials)

• 1-sigma is 32%
• 2-sigma is 5%
• 3-sigma is 0.3% (once every 300 trials)
• 4-sigma is 0.00669% (once every 15000 trials)

• 1-sigma is 32%
• 2-sigma is 5%
• 3-sigma is 0.3% (once every 300 trials)
• 4-sigma is 0.00669% (once every 15000 trials)
• 5-sigma is 5.9e-05% (once every 1,700,000 trials)
• 6-sigma is 2e-07% (once every 500,000,000)
• for

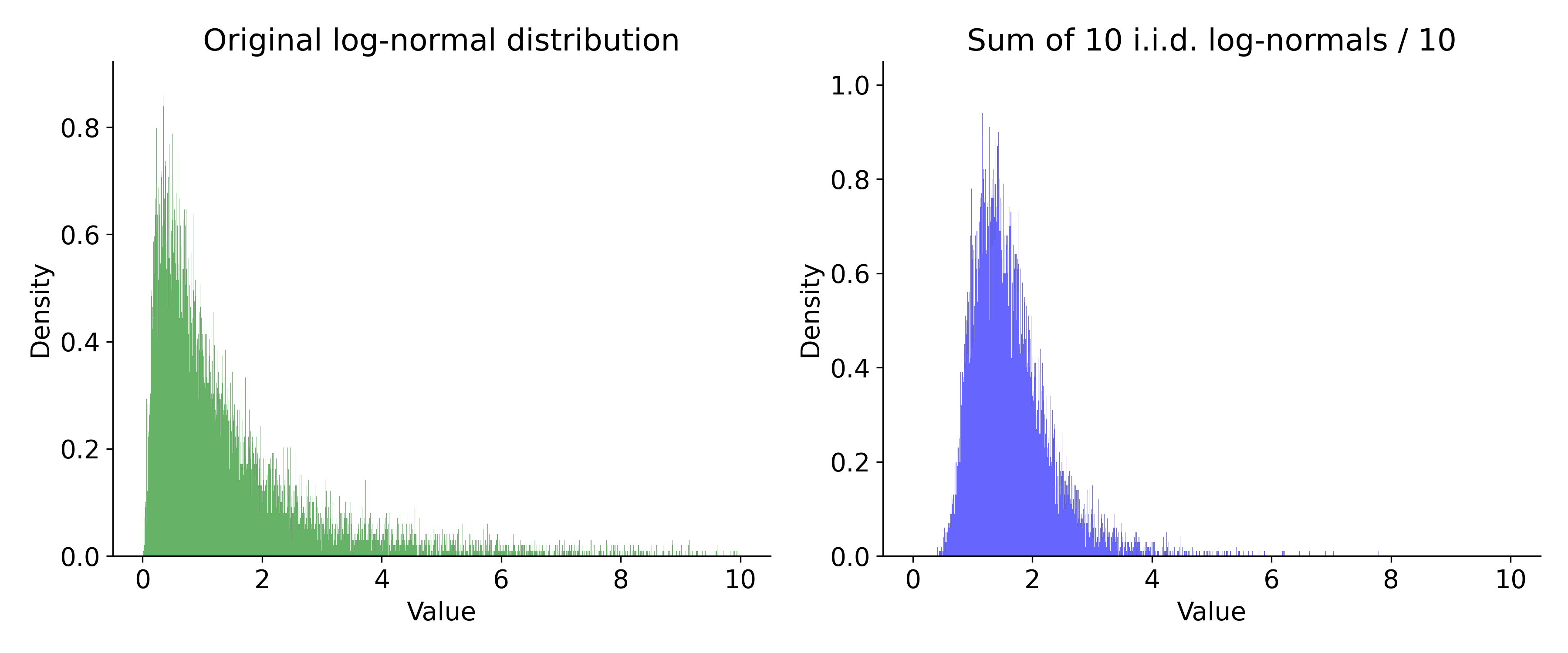

What if we dealt with log-normal distributions?

Real-world measurements

• You cannot assume normality
• Measurements are not independent.
• Reality: the absolute minimum is a often a reliable metric
• Margin: difference between mean and minimum

Conclusion

• Processors are get much better! Wider!
• 'hot spot' engineering can fail, better to reduce overall instruction count.
• Branchy code can do well in synthetic benchmarks, but be careful.
